ROQ flash – ROQdry ECO
The ROQ flash – ROQdry ECO is one of the models of the line ROQdry. It is completely automatic when connected to a ROQ automatic screen printing machine. It’s dimensions allow for it to be placed under a printing head and at the same time the power to flash cure in a reliable and efficient way. In the ROQdry ECO you can choose the flash cure area as well the temperature and the time.
Description
Product Description
- Control panel to regulate the time, the temperature and the area of drying;
- Heat transmission by convection and radiation;
Specifications
| ROQdry ECO | 3000 S | 9000 M | 14400 XL | 18000 XL+ | 20400 2XL | 25500 3XL |
|---|---|---|---|---|---|---|
| Drying area (mm/inch) | 200×200 / 8″x8″ | 400×500 / 16″x20″ | 500×700 / 20″x28″ | 600×800 / 24″x31″ | 700×1000 / 28″x39″ | 800×1100 / 31″x43″ |
| Power supply (VAC) | 1×230 | 3×230 | 3×400 | |||||
| Maximum Consumption (kVA) | 3 | 9 | 14.4 | 18 | 20.4 | 25.5 |
| Power/area (W/cm²) | 7.14 | 5 | 4.11 | 3.7 | 2.91 | 2.89 |
| Lamps | 6x500W | 9x1000W | 12x1200W | 15x1200W | 24x850W | 30x850W |
| Plug (32A or 63A) | 32 (400V) | 63 (230V) | |||||

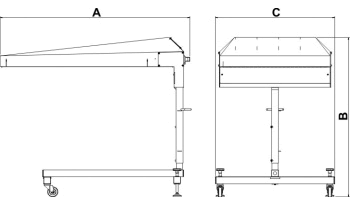

| Total Lenght (mm/feet) | 800 / 2.6′ | 820 / 2.7′ | 1040 / 3.4′ | 1400 / 4.6′ | 1450 / 4.8′ | |
| Total Height (mm/feet) | 1150 / 3.77’ | |||||
| Total Widht (mm/feet) | 300 / 1’ | 530 / 1.7’ | 620 / 2’ | 720 / 2.4’ | 830 / 2.7’ | 910 / 3’ |
