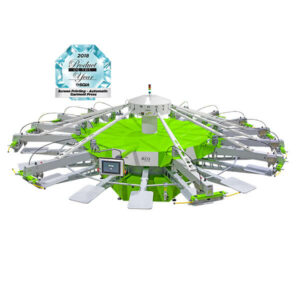

ROQprint ECO

Product Description

• ROQprint ECO the best automatic screen printing machine
  ROQprint ECO won Product of the Year awards at SGIA 2018 in Screen Printing – Automatic Garment Press. Get this award-winning machine and be a winner in your business too!The ROQprint Eco incorporates ROQ’s latest technological innovations. Which have been already tested and proven by our customers in their shops. It ranges from a minimum of 12 pallets up to a maximum of 20 pallets and from a minimum of 1 color up to 18 colors. The print area goes from 450 mm x 550mm up to a maximum of 800mm x 1100mm. The screen printing machine ROQprint Eco is the ideal choice for the most demanding printer for it as an efficient response for every task. Capable of outputting a maximum of 1300 pieces per hour this screen printing machine is a powerhouse. As an added bonus this platform is the carousel screen printing machine that best uses the ROQflock and ROQfoil modules due to its independent print head elevation feature. This elevation system makes this screen printing machine especially efficient in printing with water based inks due to the fact that the printer can manage the time that the screen are in contact with the hot pallets. Being less time in contact means less evaporation of the inks, leading to less stops during the printing of the job, leading to more earnings for the shop.The ROQprint Eco is built with top of the line materials. ROQ’s biggest focus is to create and deliver a top quality machine that requires minimum maintenance. ROQ believes that the printer must spend the least amount of time setting up jobs, cleaning the screens or dealing with the maintenance of the machine. For this every part of the ROQprint Eco is top designed for durability and precision but always pushing for innovation without sacrificing any quality.

  Still ROQ understands that having the best screen printing machine is not enough. When a printer makes the smart decision of acquiring a ROQprint Eco, the printer will also be acquiring a worldwide assistance network and a company that is committed to help and fix any situation that might arise. Usually these punctual issues are solved in record time due to the fact that in the engineering of this screen printing machine all of these factors were taken in account and it is very easy to find parts worldwide.

  ROQprint Eco a ROQsolid solution!



  Specifications

  ROQprint ECO - P10 L, P12 L, P14 L, P16 L, P18 L, P20 L

  ROQPRINT ECO	P10 L	P12 L	P14 L	P16 L	P18 L	P20 L
  number of colors (max.)	8	10	12	14	16	18
  number of pallets	10	12	14	16	18	20
  number of flash cure connection units (optional)	4	5	6	7	8	9
  maximum print size (mm/inch)	480x630 / 19”x24.8”	480x630 / 19”x24.8” | 700x700 / 27.6”x27.6” *
  maximum screen size (mm/inch)	640x980 / 25”x38.6”	640x980 / 25”x38.6” | 860x1050 / 33.9”x41.3” *
  maximum pallet size (mm/inch)	530x880 / 21.9”x34.5”	530x880 / 21.9”x34.5” | 750x950 / 29.5”x37.4” *
  maximum frame profile / thickness (mm/inch)	50 x 50 / 2” x 2”
  index precision (mm/inch)	+-0.025 / 0.001”
  maximum production (pieces/h)**	1300
  compressed air consumption (l/min. 7 bar)***	40 l/min - 0.7 cfm + number of each printhead
  maximum consumption (kVA)****	6.5	7	7.5	8.5	9.5	10.5
  machine diameter (mm/feet))	4500/ 14.8’	5050 / 16.6’	5400 / 17.7’	5750 / 18.9’	6250/20.5’	6700/20.5’
  total height (mm/feet)	2350/7.7’	2371 / 7.8’	2440 / 8’	2508 / 8.2’	2540/8.3’	2540/8.3’
  minimum width of the base (mm/feet)	1670/5.5’	1670 / 5.5’	1920 / 6.3’	2020 / 6.6’	2300/7.5’	2300/7.5’



  * double index
  ** one squeegee with flooding
  *** these values exclude the consumption with flash-curing, they should be calculated separately, taking into account the number and model of the flash cure on the machine.
  – Power Supply: 220V, 3x220V, 3x400V – 50Hz or 60Hz.

  ROQprint ECO - P12 XL+, P14 XL+, P16 XL+, P18 XL+, P20 XL+

  ROQPRINT ECO	P12 XL+	P14 XL+	P16 XL+	P18 XL+	P20 XL+
  number of colors (max.)	10	12	14	16	18
  number of pallets	12	14	16	18	20
  number of flash cure connection units (optional)	5	6	7	8	9
  maximum print size (mm/inch)	600x800 / 23.62’’x31.5’’ | 700x1000 / 27.6”x39.4” *
  maximum screen size (mm/inch)	720x1100 / 28.345’’x43.31’’ | 860x1350 / 33.9”x53.2” *
  maximum pallet size (mm/inch)	620x1050 / 24.41”x41.34” | 750x1240 / 29.53”x45.28” *
  maximum frame profile / thickness (mm/inch)	50 x 50 / 2” x 2”
  index precision (mm/inch)	+-0.025 / 0.001”
  maximum production (pieces/h)**	1200
  compressed air consumption (l/min. 7 bar)***	40 l/min - 0.7 cfm + number of each printhead
  maximum consumption (kVA)****	7	7.5	8.5	9.5	10.5
  machine diameter (mm/feet)	5650 / 18.5’	6000 / 19.7’	6350 / 20.8’	6850 / 22.5’	7250 / 23.8’
  total height (mm/feet)	2371 / 7.8’	2440 / 8’	2508 / 8.2’	2540 / 8.3’	2540 / 8.3’
  minimum width of the base (mm/feet)	1670 / 5.5’	1920 / 6.3’	2020 / 6.6’	2300 / 7.5’	2300 / 7.5’



  * double index
  **  one squeegee with flooding for a A4 print.
  *** consumption of each printhead: 90 l/min. | 3.15cfm in 20 pieces/min.

  ***** these values exclude the consumption with flash-curing, they should be calculated separately, taking into account the number and model of the flash cure on the machine.
  – Power Supply: 220V, 3x220V, 3x400V – 50Hz or 60Hz.

  ROQprint ECO - P10 2XL, P14 2XL, P10 3XL, P14 3XL

  ROQPRINT ECO	P10 2XL	P14 2XL	P10 3XL	P14 3XL
  number of colors (max.)	8	12	8	12
  number of pallets	10	14	10	14
  number of flash cure connection units (optional)	4	6	4	6
  maximum print size (mm/inch)	700x1000 / 27.6”x39” | 800x1000 / 31.5”x39.4” *		800x1100 / 31.5”x43.3” | 1000x1100 / 39.4”x43.3” *
  maximum screen size (mm/inch)	850x1350 / 33.5”x53.2” | 950x1350 / 37.4”x53.2” *		950x1450 / 37.4”x57.1” | 1150x1450 / 45.3”x57” *
  maximum pallet size (mm/inch)	750x1240 / 27.6”x39” | 850x1240 / 33.5”x48” *		850x1350 / 33.1”x53.5” | 1050x1350 / 41.3”x53.1” *
  maximum frame profile / thickness (mm/inch)	50 x 50 / 2” x 2”
  index precision (mm/inch)	+-0.025 / 0.001”
  maximum production (pieces/h)**	1100		1000
  compressed air consumption (l/min. 7 bar)***	40 l/min - 0.7 cfm + number of each printhead
  maximum consumption (kVA)****	8	10.5	8	10.5
  machine diameter (mm/feet)	6050 / 19.5’	7200 / 23.6’	6500 / 21.3’	7600 / 24.9’
  total height (mm/feet)	2434 / 8’	2495 / 8.2’	2434 / 8’	2491 / 8.2’
  minimum width of the base (mm/feet)	2000 / 6.6’	2300 / 7.4’	2000 / 6.6’	2300 / 7.4’



  * double index
  **  one squeegee with flooding for a A4 print.
  *** consumption of each printhead: 90 l/min. | 3.15cfm in 20 pieces/min.

  ***** these values exclude the consumption with flash-curing, they should be calculated separately, taking into account the number and model of the flash cure on the machine.
  – Power Supply: 220V, 3x220V, 3x400V – 50Hz or 60Hz.
